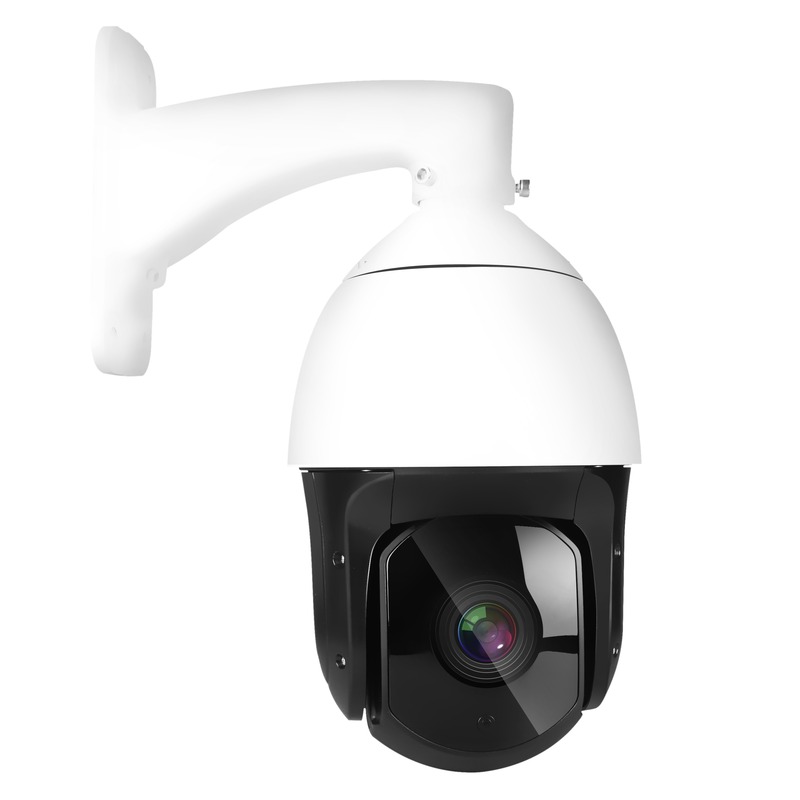

1/2.8" starlight sensor;
HD 1080P Resolution, Image clear, Delicate;
Day/Night(Auto ICR);
Auto electronic shutter time;
IR range: 8 led lambs 120m;
18x optical zoom;
Ingress Protection:IP66;
Support DWDR, 3D DNR;
H.265+/H.265/H.264 encoding algorithm;
Mobile phone remote monitoring (iOS, Android);
Multi browser access (IE, Chrome, Firefox, Safari);
Information superposition ( ID, IP, DDNS etc.)
Support WEB, CMS, VMS, MYEYE, Cloud services;
Support HVR/NVR, Onvif protocol;
Model | SD-MN5420M8-X18R | |
Sensor | 1/2.8" starlight CMOS | |
Min. illumination | Color:0.001Lux @(F1.2,AGC ON); 0 Lux with IR | |
B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR | ||
Shutter time | automatic | |
Frame rate | PAL: 1080P@25fps | |
NTSC: 1080P@30fps | ||
Max. Image | 1920*1080 | |
Day&night | IR cut filter with auto switch | |
Lens | Aperture | F1.6-F2.7 |
Focal length | 4.7mm~84.6mm | |
Optical zoom | 18X | |
Function | IR range | 8 led lambs 120m |
IR control | Depend on the focal length | |
Rotation range | Level:0°~360° Continuous rotation | |
Vertical:-15°~90° continuous monitoring | ||
Preset point | 50 point | |
Auto mode | Preset point/preset point cruise/horizontal scan/auto scan/path | |
PTZ function | Support the turn-on movement, support power memory function | |
protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP, (HTTPS, SIP, 802.1x, IPv6 Optional ) | |
Storage | Network storage ,SD card (up to 64G, self made) | |
Interface | AudioI/O | 0/0(RCA) |
AlarmI/O | 0/0 | |
Ethernet | 1*10/100Mbps Ethernet port, RJ45 port | |
General | Power supply | DC12V/4A |
Temperature | -20℃~65℃ | |
Humidity | 10%-90% RH | |
Material | Metal+ABS plastic | |
Ingress Protection | IP66,TVS4000V Lightning-Proof and Anti-Surge | |
Weight | Around 2.7kg | |
Dimension | 185mm*316.5mm |
Hangzhou Xiongmai Technology Co., Ltd., an innovative technology company specializes in audio&video hardware research and development established in 2008, is a global leading provider of safe&security solutions and technologies. We are committed to providing the productions solutions and technology service in audio &video areas, continuously boosting our customer experience, and creating maximum value for them. Now, as our products and solutions have been applied to more than 80 countries, we have been the provider of the majority of the security manufacturers.
Q:1.How to provide you a good market suggestion?
A: We provide you an accurate and comprehensive marketing suggestion in accordance with alibaba periodical big data, google big data, our company data, in combination with our experience.
Q: 2. How to order?
A: Please contact us online or send us email, we will send you PI, once receiving your payment, we will send out goods soon and tell you the tracking number. Or we could communicate to start an order on line by trade assurance.
Q: 3. How to proceed LOGO print order?
A: 1) send us the logo files, once receiving your payment(large order 30%), we will arrange to design the logo;
2) after received your confirmation of the logo, we will do sample and send it you check;
3) if you confirm the sample is ok, we will produce the mass;
4) once ready, please pay the rest payment and we will send out goods and tell you the tracking number
Q: 4. Can I do my original design products?
A: Yes, our engineer team will always be ready for your any needs.
Q: 5. What is the guarantee of our products and how about the returns?
A: 1) 12 months warranty, low-value consumption goods is not within the scope of the warranty;
2) Warranty service will be honored if the damage is not caused by human;
3) Please send back the defective goods within the warranty period, we will repair them or send you new free;
4) If there are only several pieces accessory(the fee is less or around shipping fee) are damaged, please send us some pictures and videos about the detail problem.
Once confirmed the problem, we will send you free new goods together with your next order.
