INTERFACES | ||||||||

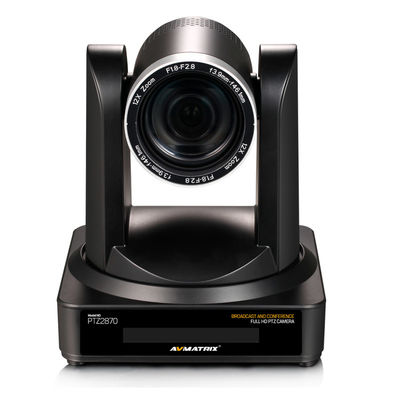

Model No. | PTZ2870 | |||||||
Video Out | HDMI, USB3.0, USB2.0 | |||||||
LAN Port | IP Streaming: RTSP/RTMP,ONVIF | |||||||
Control Interface | RS-232 In, RS485 In | |||||||
Control Protocol | VISCA/ Pelco-D/ Pelco-P | |||||||
Video Format | HDMI/ SDI/ USB3.0 Video up to 1080P60, USB2.0 up to 1080P30 | |||||||
CAMERA PARAMETERS (Optional) | ||||||||||
Optical Zoom | 5× | 10× | 12× | 20× | 30× | |||||
Focal Length | F=3.6~18mm | F=4.7~47mm | F=3.9~46.8mm | F=5.2~98mm | F=4.3~129mm | |||||
View Angle | 20.0°(tele) | 6.43°(tele) | 6.3°(tele) | 3.3°(tele) | 2.34°(tele) | |||||
83.3°(wide) | 64.2°(wide) | 72.5°(wide) | 54.7°(wide) | 65.1°(wide) | ||||||
Aperture Value | F1.8 ~ F2.8 | F1.6 ~ F3.0 | F1.8 ~ F2.4 | F1.6 ~ F3.5 | F1.6 ~ F4.7 | |||||
Sensor | 1/2.8 inch, High quality HD CMOS sensor | |||||||||
Effective Pixels | 16: 9, 2.07 Megapixel | |||||||||
Digital Zoom | 10× | |||||||||
Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |||||||||
DNR | 2D & 3D DNR | |||||||||
SNR | >55dB | |||||||||
White Balance | Auto/ Manual/ One Push/ 3000K/ 4000K/ 5000K/ 6500K | |||||||||
WDR | OFF/ Dynamic level adjustment | |||||||||
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |||||||||
Other Camera Parameters | Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC | |||||||||
PTZ PARAMETERS | ||||||||
Rotation Angle | Pan: ±170°, Tilt: -30°～+90° | |||||||
Rotation Speed | Pan: 60°/sec (Range: 0.1 -180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec) | |||||||
Preset Number | 255 presets (10 presets by remote controller) | |||||||
OTHERS | ||||||||
Input Voltage | DC12V±10% | |||||||
Input Current | 1A (Max) | |||||||
Consumption | 12W (Max) | |||||||
Temperature | Working Temperature: -10~+50°C, Store Temperature: -10~+60°C | |||||||
Working Humidity | Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation) | |||||||
Dimension | 150×150×167.5mm | |||||||
Weight | 1.4kg | |||||||
Accessories | Power Supply, RS232 Control Cable, USB3.0 Cable, Remoter, Manual | |||||||
Installation Methods | 1/4 inch tripod hole; Bracket installation for Optional | |||||||
