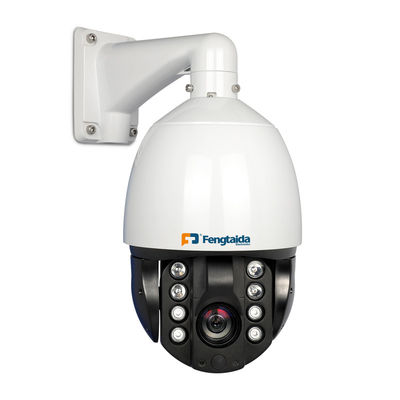

Built-in PoE and long range PTZ WiFi Night Vision IR Zoom Siren 40X 30X 20X Outdoor Auto Tracking Dome Speed ​​Camera

Built-in PoE and long range PTZ WiFi Night Vision IR Zoom Siren 40X 30X 20X Outdoor Auto Tracking Dome Speed ​​Camera
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Informação básica
Condições de Pagamento e Envio
Descrição de produto
Products Description
Product overview:
* World's First Ever “invisible wiper” with smart rain sensor
* Stability of operation, Low running noise, Ease to install, and long products life
* Invention patent CTC Technology, it allows work at -45°C~70°C
* Gore-Tex technology, no humidity around internal dome
* High precision motor, preset point precision ≤ 0.1 degree
* Unique heat treatment device to prevent the fog
* PT position automatic correction function
* Support P2P access of Android and IOS
* Support mainstream NVR ONVIF protocol access;
* Durable housing, no corrosion and flaking after 300hr spray test
* The IRx transmittance of lens glass can reach 98% after special optical treatment
* 200m IR night vision, IP66 waterproof
* 360º endless Pan, -10~90° Tilt auto.flip
Dome type
IRS2-001 Series High Definition IP Speed Dome Specifications
FTD-IRS2-2122 (18X)
Network
Network Interface
Ethernet 10/100Base-T (RJ-45)
Network Protocol
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P
Compatibility
Support Hikvision,XM,TOPSEE etc center platform management software
Interface Protocol
ONVIF2.4/GB28181(Option- Customize)
Mobile monitoring
Operating System
Android/IOS
Camera
Image Sensor
1/2.8” 2.0M piexls Sony IMX327 CMOS
Optical Zoom
18X
Minimum Illumination
Color: 0.03Lux at F1.5; B/W: 0.001Lux at F1.5; 0Lux(IR on)
WDR
More than 100dB
S/N Ratio
More than 48dB(AGC off)
Day/Night
Auto(ICR) / Color / B/W
Angle of View
72° ~ 3.8°
Electronic Shutter Speed
1/2 - 1/20,000s
Noise Reduction
DNR,3DNR
Defog
Support
Max. Aperture
F1.5~F2.7
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Video
Compression
H.265/H.264/MJPEG
Video Interface
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB)
Resolution
Main stream:1920x1080,1280x960,1280×720,720×576,640×480
Sub stream:640×480,352×288,320×240,176×144
MJPEG:1920x1080,1280×720
Max Frame Rate
H.265/H.264: 30fps@1920x1080
Bitrate
MainStream:10.0Mbps@VBR/Sub Stream:32Kbps@VBR
Audio
Algorithm
G711,PCM
Input
1 x Line-In (Mini-stereo, Single Mono)
Output
1 x Line-Out (Mini-stereo, Single Mono)
Pan/Tilt
Range
Pan : 360°(Endless)/ Tilt: -10~90°
Pan/Tilt Speed
Preset Max.:131°/sec
Manual : 0.1° ~ 131°/sec (Zoom Proportional)
Patrol : 1.4°~131° /sec
Preset
246Presets and 9 presets for special function
Patrol Scan
3 Group Patrol
Air Wiper
Auto / Manual
Other Functions
Auto Flip, Auto Parking, Power-up Action & etc
Alarm
Alarm Input
1(ON/OFF signal)
Alarm Output
1(ON/OFF signal)
Infrared
IR distance
150m-200m(Max.)
Wave
850nm
Physical
IP protection
With IP66
Operating Temperature
–35℃~60℃
Humidity
0%~98% (Non condensing)
WIFI/4G Module
Extend WIFI /4G module(Option- Customize)
Store
TF Card
Power Source
AC24V 3A 60Hz/50Hz
Power Consumption
AC24V:8W-47W
